Adiabatic Cooling System for Chillers
Phone Number eg. +91 88888888889
iNTELLIGENT ADIABATIC COOLING SYSTEM (iACS)™ – the new generation, chiller booster
Switch to iNTELLIGENT ADIABATIC COOLING SYSTEM (iACS)™, and start saving on your chiller energy. It is a new generation adiabatic cooling system that improves the performance of all air-cooled chiller equipment operating in hot and dry climatic conditions.
Our chiller-boosting new generation intelligent adiabatic pre-cooling system analysis the ambient temperature and relative humidity and regulates the water from the skid to conserve water with optimum performance.
What is Adiabatic Cooling?
The adiabatic cooling is a process where we precool the entering air on the condenser coils which improves the chiller efficiency substantially and enhances the cooling capacity.
The Intelligence:
1. Using new generation technologies, the adiabatic cooling system provides condenser pre-cooling and cools down intake air.
2. The adiabatic cooling system reduces gas pressure within the chiller circuit, reducing compressor load, increasing COP, and lowering electricity consumption.
3. The air screen filter protects the condensers from rust, dust, direct sunlight, and calcium and mineral deposits (lime scale).
4. The chiller load, gas pressure, air temperature, air humidity, and fan algorithm are all analyzed by our new generation intelligent controller.
5. Five-stage water treatment and purification system ensures sustained performance by preventing any chocking on the mist nozzles.
6. The iNTELLIGENT ADIABATIC COOLING SYSTEM (iACS)™ is modular and can be easily installed on any air-cooled chiller design.
7. The system ensures lowest water consumption with maximum adiabatic efficiency across the industry.
The system's operation
Chiller booster adiabatic cooling combines adiabatic evaporative pre-cooling, condenser protection and sustained performance. The system can be placed anywhere near the chillers and have different nomenclature for multi-compressor chillers.
The System Advantages
The iNTELLIGENT ADIABATIC COOLING SYSTEM (iACS)™ from EnerGeo™ has been designed for sustainability, ease of installation, and cost-effective operation.
1. Reduces chiller energy consumption by up to 38%
2. Increase the service life of equipment substantially
3. Increase chiller cooling capacity by up to 40%
4. Minimum water consumption across the industry.
5. Protects the chiller condensers and enhances the life of compressors.
6. Return on investment in less than 2 years.

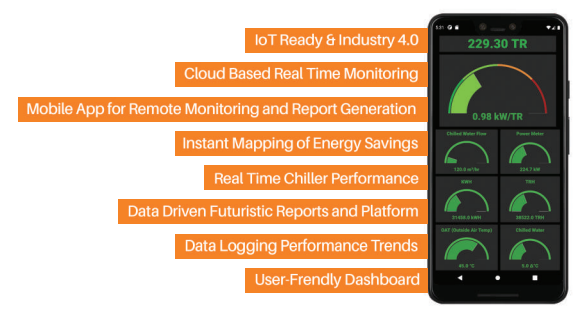

The System Features
STANDARD FEATURES
1. Adaptive Algorithm Control Logic for Ambient Temperatures and Relative Humidity.
2. Graphical Representation on a 7" Touch Screen.
3. Service/Preventive Maintenance Notifications.
3. Analysis of Chiller Operation and Multimode Function.
4. Controls water supply and decreases water waste.
INTELLIGENT CONTROLLER (OPTIONAL)
This smart device communicates with a cloud server and pushes the most accurate data of the key parameters available in real time. The system not only records chiller-specific power consumption, but it also monitors small/large ∆T profiles of chilled water, chiller instantaneous cooling output, and chiller Ikw/TR with accurate flow monitoring. The system collects data for each parameter and analyses it using the internet facility built into iACS™ and linked to a cloud-based server.
About Us
About EnerGeo™
EnerGeo™ is the world's leading manufacturer of Intelligent Adiabatic Cooling System (iACS)™, a new generation intelligent adiabatic pre-cooling system for air-cooled chiller plant rooms. The system kit is suitable for both retrofit and new chillers. Each kit is designed to fit all models of air-cooled chillers and condensers.
